Description

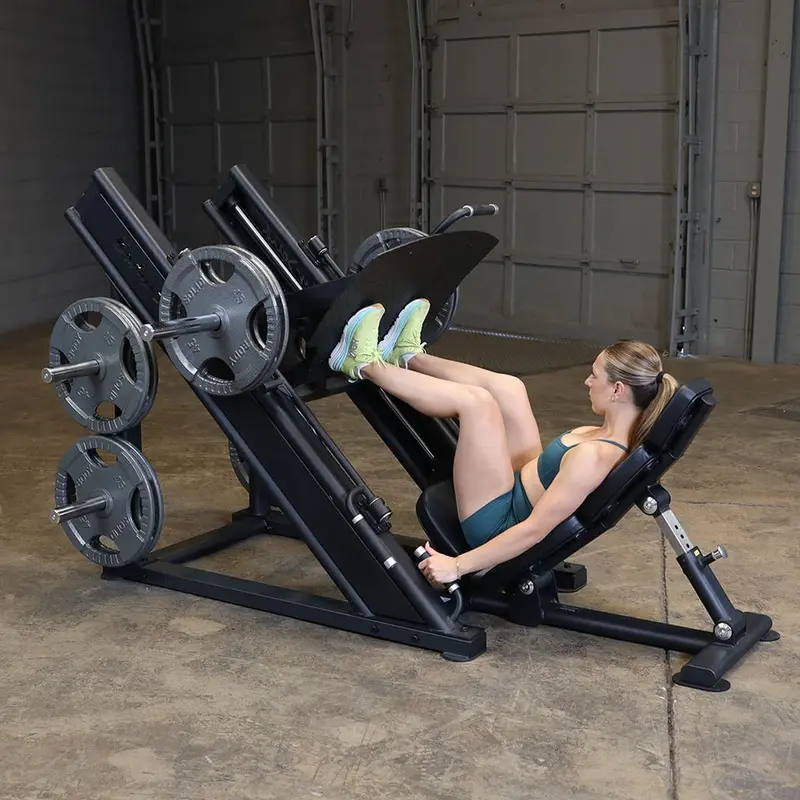

Body-Solid Pro ClubLine SGLP500 Linear Bearing Commercial Leg Press

The Body-Solid Pro ClubLine SGLP500 Linear Bearing Commercial Leg Press is a full commercial leg press machine built for lower body strength training in gyms, athletic facilities, training studios, and high-use fitness spaces.

Designed with sealed linear bearings, a 45-degree press angle, an extra-wide footplate, five back pad adjustments, and a 1,500 lb. weight capacity, the SGLP500 delivers smooth movement, heavy loading potential, and secure positioning for quads, hamstrings, glutes, and total lower body development.

Key Features

• Sealed linear bearings provide smooth, low-friction movement for consistent commercial leg press performance.
• 1,500 lb. weight capacity supports serious lower body strength training and heavy plate-loaded workouts.
• Large 30” x 24” footplate accommodates a wide range of users and foot positions for varied lower body targeting.
• Five back pad adjustments help users find a comfortable fit and maximize range of motion.
• Two 14.75” Olympic weight horns on the carriage allow heavy plate loading for progressive strength training.
• Four integrated plate storage horns keep Olympic plates organized and accessible during workouts.
• Flip-in, flip-out safety racking mechanism and assist handle support safer setup, entry, exit, and training confidence.

Exercises

Use the SGLP500 for leg presses, high foot placement presses, low foot placement presses, narrow stance presses, wide stance presses, quad-focused training, glute-focused training, hamstring-focused training, and progressive lower body strength workouts.

Who This Is For

This commercial leg press is ideal for health clubs, commercial gyms, school weight rooms, personal training studios, athletic performance facilities, apartment fitness centers, and serious strength environments that need a durable plate-loaded leg machine for heavy lower body training.

Specifications

• Application: Commercial
• Exercise Focus: Quads, hamstrings, glutes, lower body strength training
• Type: Plate-loaded leg press machine
• Dimensions: 88.8” L x 67.7” W x 54.1” H
• Product Weight: 555.6 lbs.
• Weight Capacity: 1,500 lbs.
• Movement System: Heavy-duty sealed linear bearings
• Press Angle: 45 degrees
• Resistance Ratio: 1:2 weight resistance from plate load, plus approximately 70 lbs. of sled resistance
• Footplate: 30” x 24” extra-wide footplate
• Back Pad Adjustments: 5 positions
• Weight Carriage: Two 14.75” Olympic weight horns
• Plate Storage: Four integrated plate storage horns
• Safety Mechanism: Flip-in, flip-out safety racking mechanism
• Assist Feature: Entry and exit assist handle
• Assembled Dimensions: 88.8 in / 2255 mm L x 67.7 in / 1720 mm W x 54.1 in / 1375 mm H
• Assembled Weight: 555.6 lb / 252.0 kg
• Gross Weight: 716.0 lb
• Package 1 Dimensions: 78.7 in / 2000 mm L x 14.6 in / 370 mm W x 18.7 in / 475 mm H; 12.41 ft³ / 0.352 m³; 286.0 lb gross weight
• Package 2 Dimensions: 61.8 in / 1570 mm L x 14.6 in / 370 mm W x 14.4 in / 365 mm H; 7.49 ft³ / 0.212 m³; 174.2 lb gross weight
• Package 3 Dimensions: 38.6 in / 980 mm L x 37.6 in / 955 mm W x 23.8 in / 605 mm H; 20.00 ft³ / 0.566 m³; 255.8 lb gross weight

Warranty

Backed by Body-Solid’s Full Commercial Warranty. Frame and welds are covered for lifetime use, bushings and hardware are covered for 3 years under full commercial warranty, and pads, rollers, and grips are covered for 1 year. Additional lifetime warranty coverage may apply by use setting and warranty type.

Frequently Asked Questions

Is the Body-Solid SGLP500 suitable for commercial gyms?
Yes. The SGLP500 is a full commercial leg press machine with sealed linear bearings, a 1,500 lb. weight capacity, integrated plate storage, and Body-Solid Full Commercial Warranty coverage.

What muscles does the SGLP500 leg press target?
The SGLP500 targets the quads, hamstrings, and glutes while supporting lower body strength, hypertrophy, and conditioning workouts.

How much weight can the SGLP500 handle?
The machine has a 1,500 lb. weight capacity and uses two 14.75” Olympic weight horns on the carriage for heavy plate-loaded training.

Does the SGLP500 include safety features?
Yes. It includes a flip-in, flip-out safety racking mechanism and an assist handle to help users enter, exit, and train with confidence.
