Description

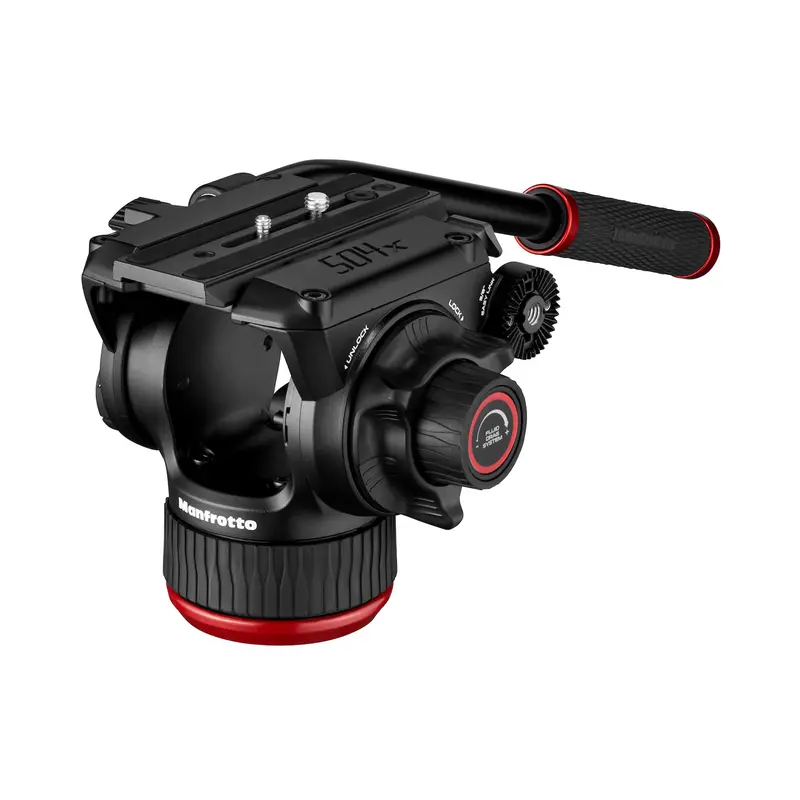

Manfrotto 504X Fluid Video Head with Flat Base
The 504X Fluid Video Head is the evolution of the hugely successful 504HD.
It’s a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.
The head is made from a brand-new catching aluminum design, and has a maximum payload of 26.4 lbs.
Utilizing Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It’s never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 14.3 lbs at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.
Two easy link 3/8” thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.
The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit leveling bubble.
Features:
- 26.46 lbs Max load capacity
- Variable fluid Drag System on PAN & TILT, performed by new fluid
- 4 steps counterbalance system up to 14.3 lbs
- Flat base for shooting on sliders, jibs or other accessories
- Sliding plate side lock attachment
- Highest safety standards ensured by UNI/PdR 105:2021 compliance
- Bubble level
- Designed in Italy
Compatible With:
Tripod Plates:
- 504PLONGR-1 Video Camera Plate with Metric Ruler
Optional Accessories (Sold Separately):
- MVAPANBARM PVC Free Pan Bar
- MVAPANBARL Telescopic PVC Free Pan Bar
Dimensions:
Working Height: 5.87″
Base Diameter: 75mm / 2.95″
Weight:
4.41 lbs
Materials:
Aluminum
Product SKU:
MVH504XAH
In The Box:
Manfrotto 504X Fluid Video Head with Flat Base
Manfrotto 504PLONGR-1 Video Camera Plate with Metric Ruler
Pan Handle
Limited 6-Month Manufacturer Warranty
5-Year Registration Extension (US Only)
